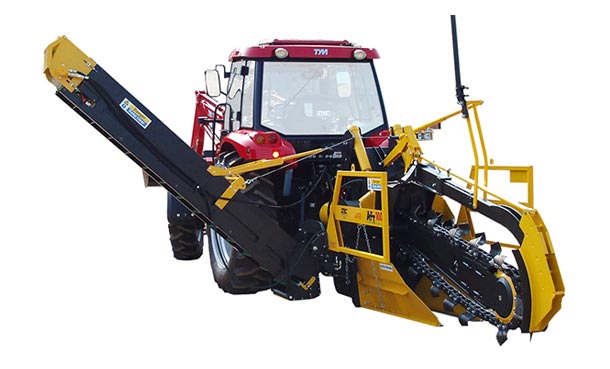

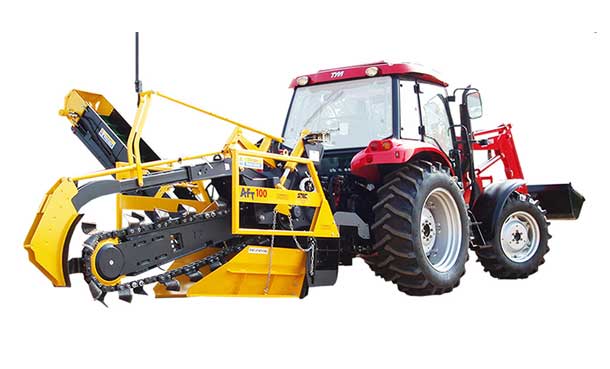

THE AFT100 AT A GLANCE
- Between 100 and 300 metres/hour*
- A clean-cut trench with laser grading as an option
- Spoils collected by a clean-up conveyor system
- Easily carried by a 100+ HP tractor
- Only a fraction of the cost of a self-propelled trencher
*Speed factors: ground conditions, depth and width of the trench.

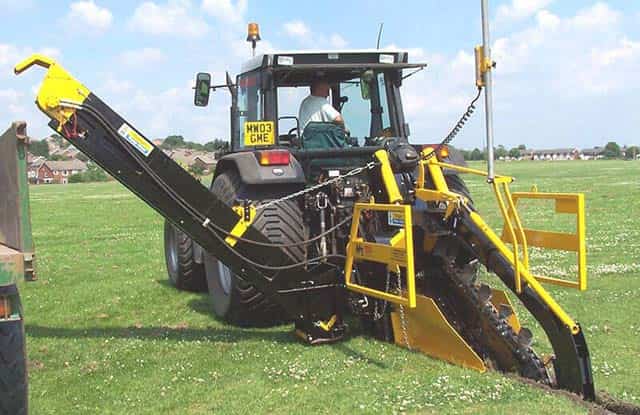

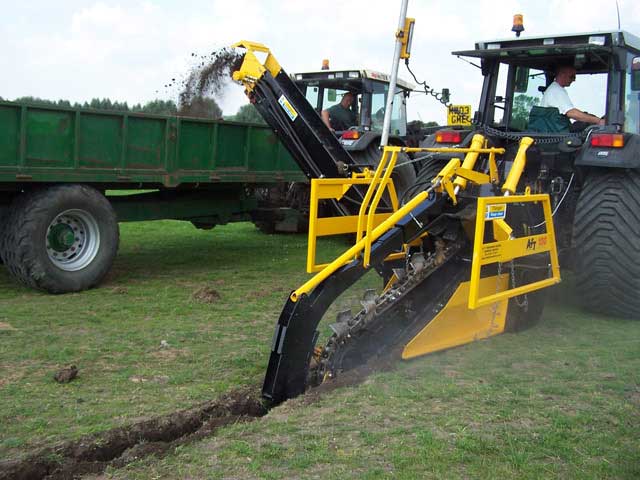

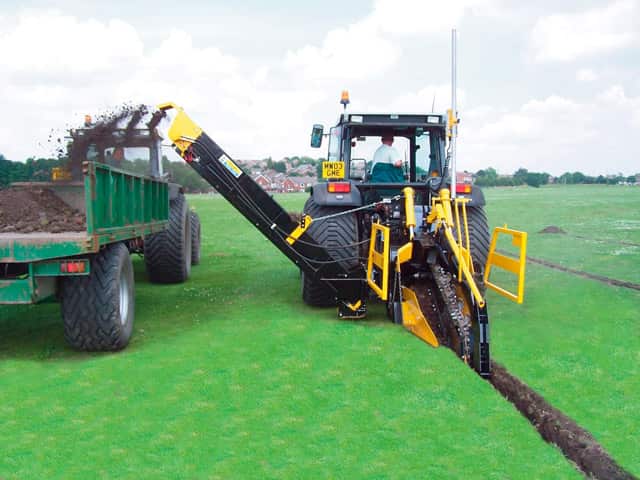

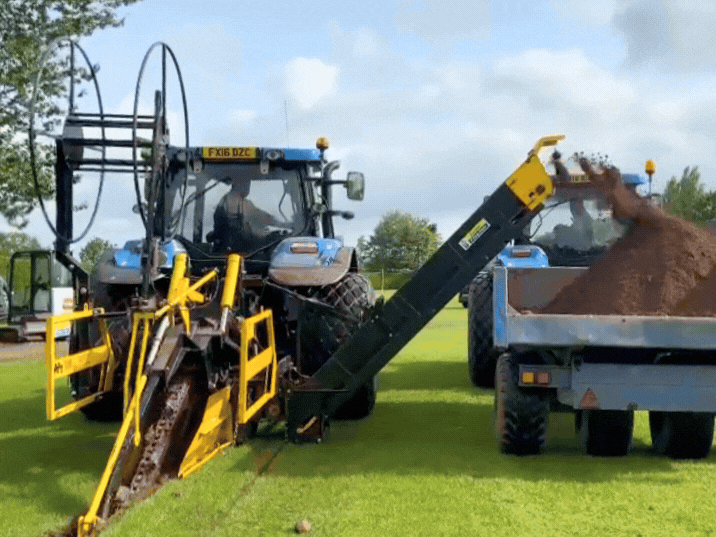

The Soil Clean-up Conveyor System Removes the Spoils Onto a Dumper
J Pugh-Lewis (UK)

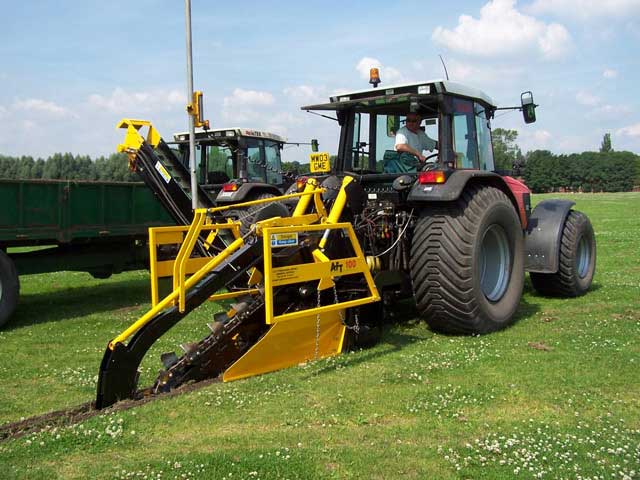

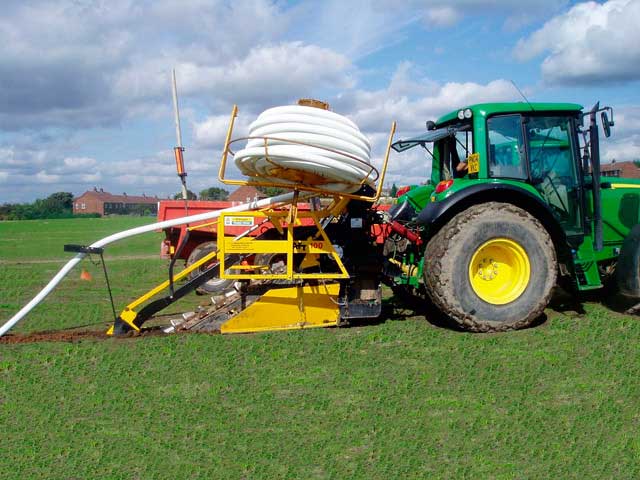

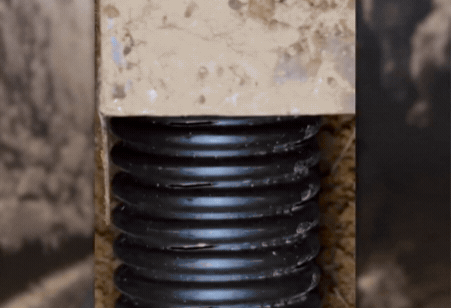

A Clean-Cut Trench is Ideal to Lay Drainage Pipes
JFS Contracting (UK)
THE AFT100 IN ACTION
Brightview Landscapes (USA) digging drainage trenches for the LA Rams training facility
J. & R. Alker Sports Ground Construction’s AFT100 is still going strong after 19 years
MAIN FEATURES & COMPONENTS
- Maximum Depth: 1.0, 1.2, 1.4, 1.6 or 1.8m
- Width:
- Chain made up of individual links (for ease of maintenance)
- Chain fitted with soil blades and tungsten-tipped carbide teeth
- Soil clean-up conveyor system (discharge height 2.2m)
- Options:
- Weight: 1,300 kg to 1,900 kg (depending on accessories)

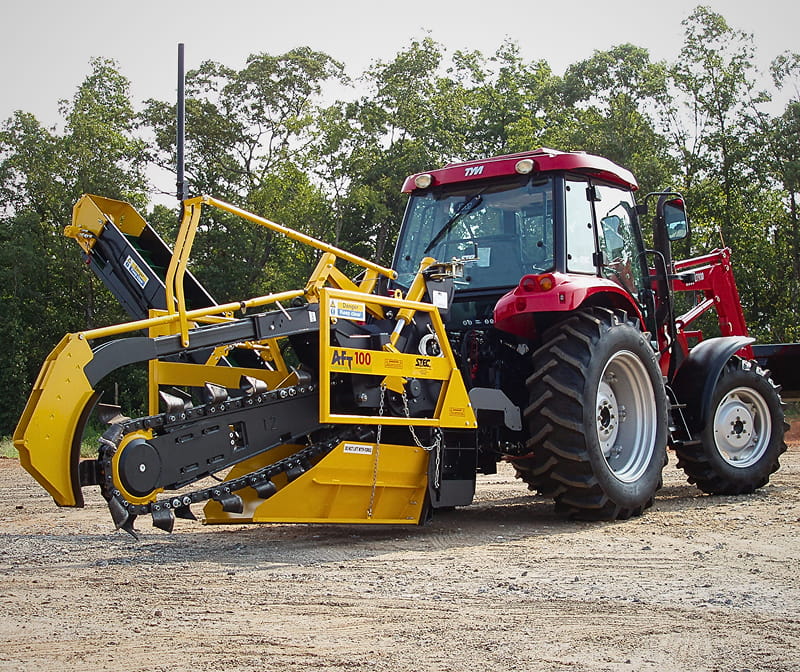

TRACTOR REQUIREMENTS
- 100+ HP with CAT 2/3 linkage
- VARIO transmission OR CREEPER gearbox (minimum speed: 50–100 metres/hour)
- 1–3 sets of feed/return spool valves (depending on trencher accessory choices)
- PTO shaft, 6 spline, 540 RPM

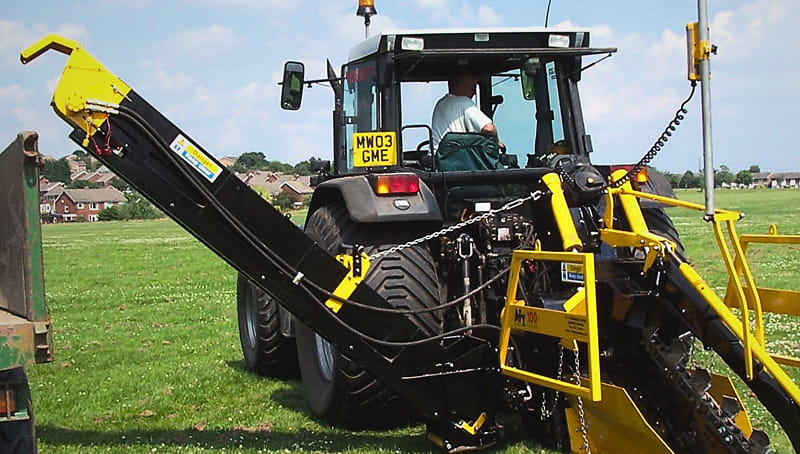

You will need at least a 100 HP tractor to operate the AFT100 with the conveyor
WHY CHOOSE THE AFT100?
WHAT LANDSCAPE CONTRACTORS SAY ABOUT THE AFT100
“I’m absolutely thrilled with how clean the tops of the trench are left and how capable the machine is even at 200mm wide and over 0.9m deep! This is going to be an absolute game changer for us and save an incredible amount of time!”
Daniel Breakwell
Owner, Greenway
Landscape Developments
(UK)
