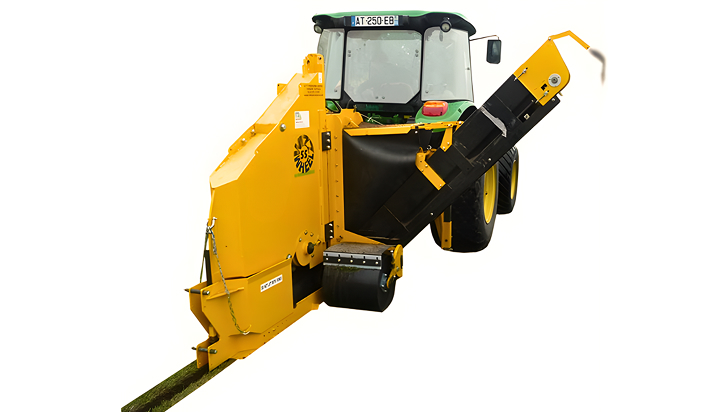

The Wizz Wheel 55 at a glance
- Very high-speed trenching (up to 750 metres per hour)*

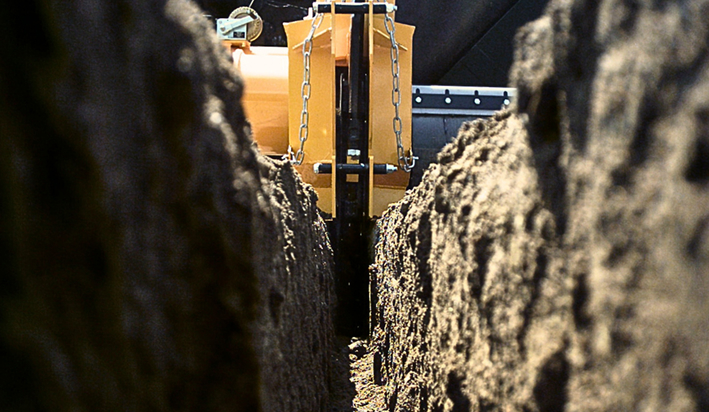

- A clean-cut and narrow trench
- Can dig in tough soil conditions (i.e. basalt)

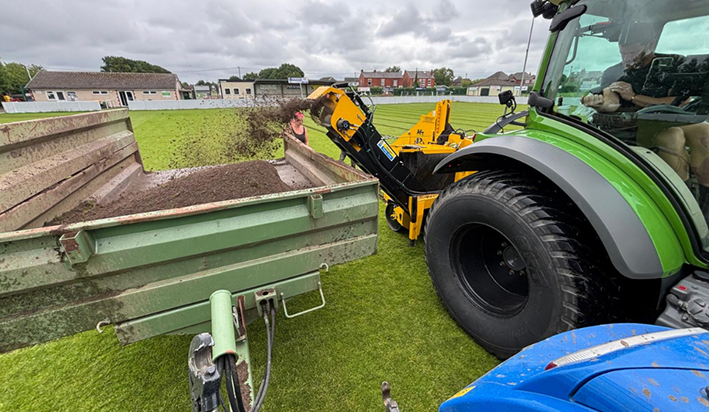

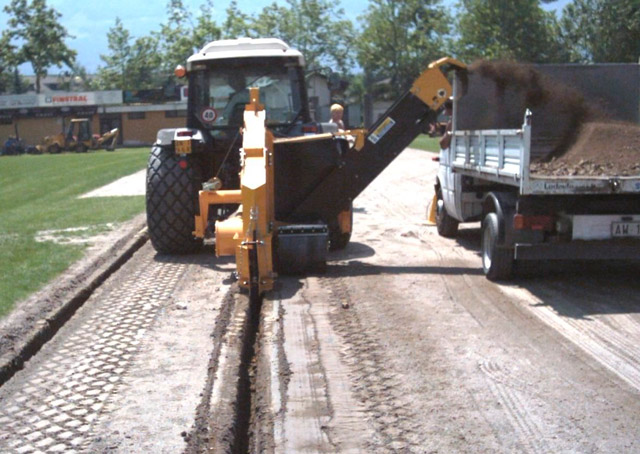

- Spoils collected by the clean-up conveyor system
- Laser grading as an option
*Speed will depend on various factors such as ground conditions and depth/width of the trench.

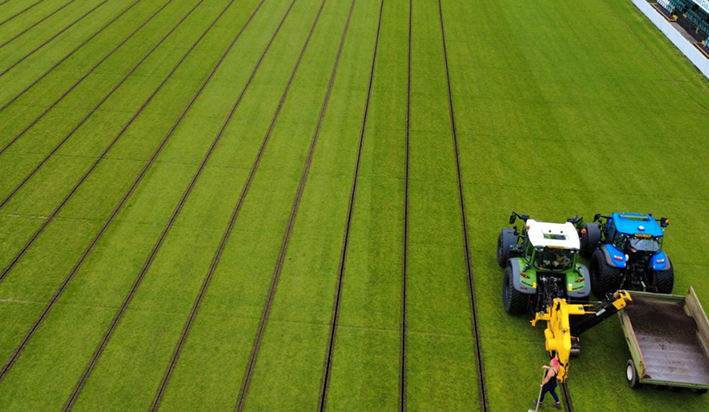

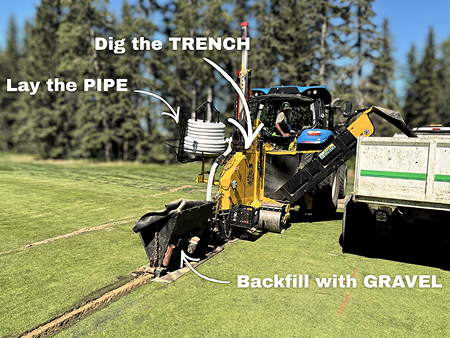

One-pass operation
TDS Turf Drainage Systems (Canada)

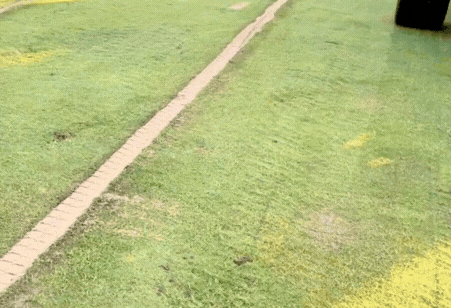

Course playable the next day
TDS Turf Drainage Systems (Canada)

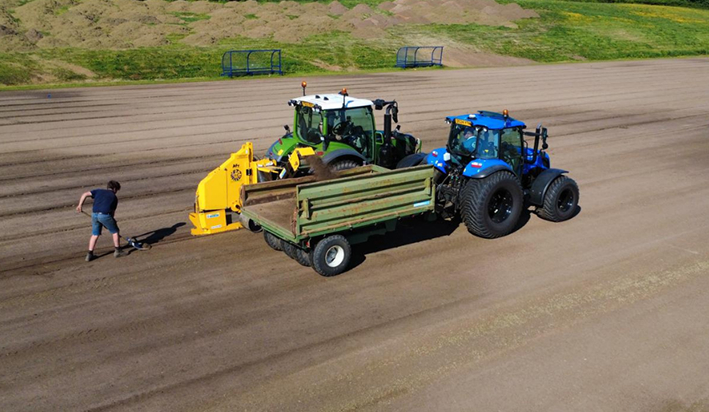

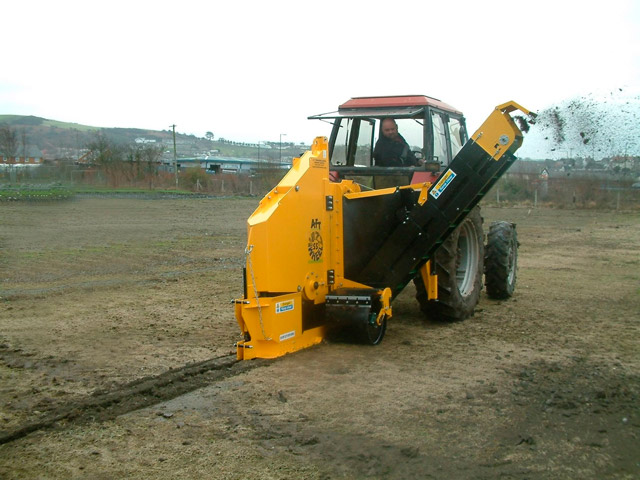

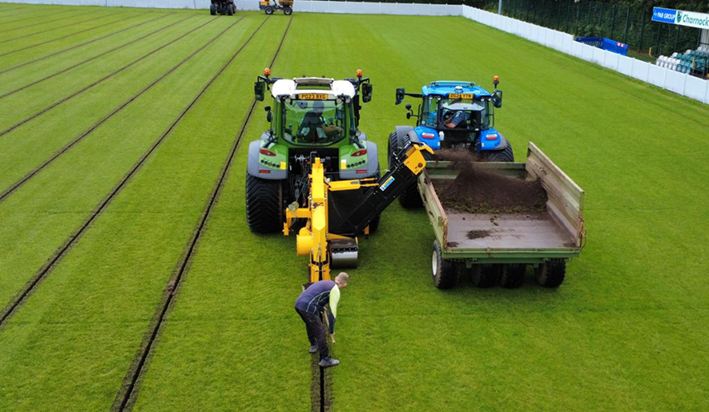

The Wizz Wheel 55 in action
TDS Turf Drainage Systems (Canada) using the Wizz Wheel for one-pass drainage

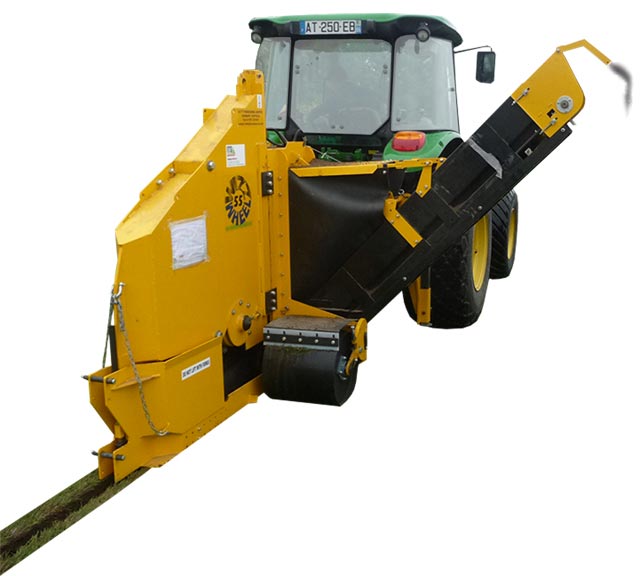

Main Features & Components
- Maximum depth: 0.55m
- Width: From 50mm to 150mm
- Digging wheel fitted with soil blades, carbide teeth or bullet teeth

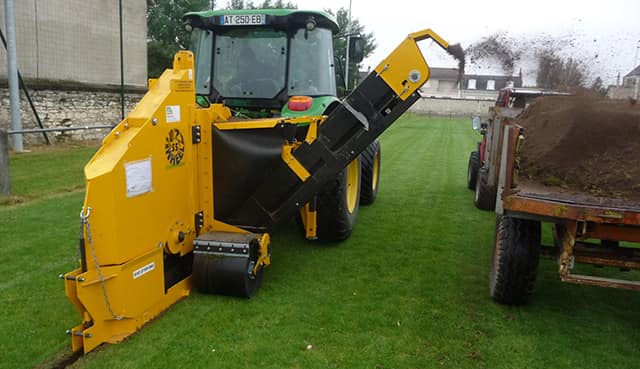

- Complete soil clean-up conveyor system (discharge height of 1.8m or 2.2m)
- Optional: Laser grading accessories
- Optional: Pipe or cable chutes and reel carrier for one-pass operation
- Weight: Approx. 1,100 kg
Teeth options

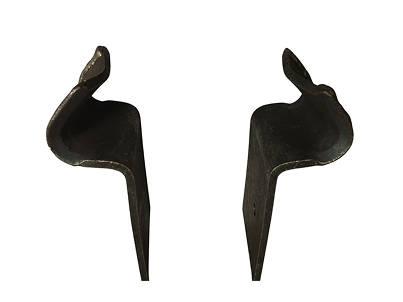

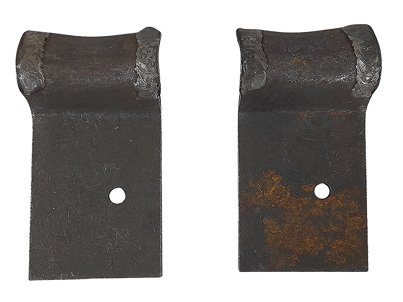

Soil blades
Soft clay, sandy soils, silt, etc.

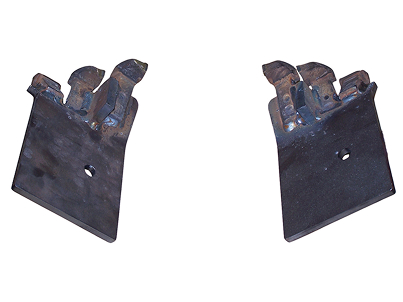

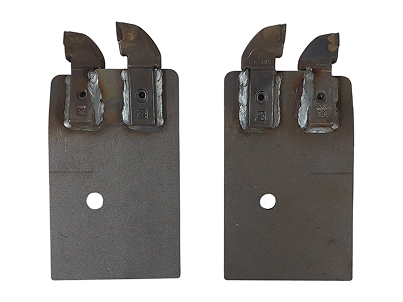

Carbide teeth
Heavy clay, small stones, etc.

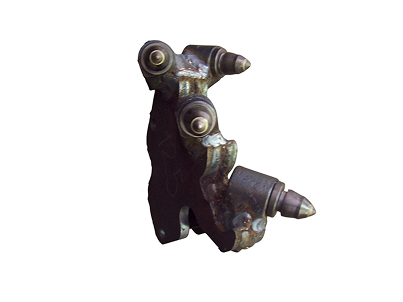

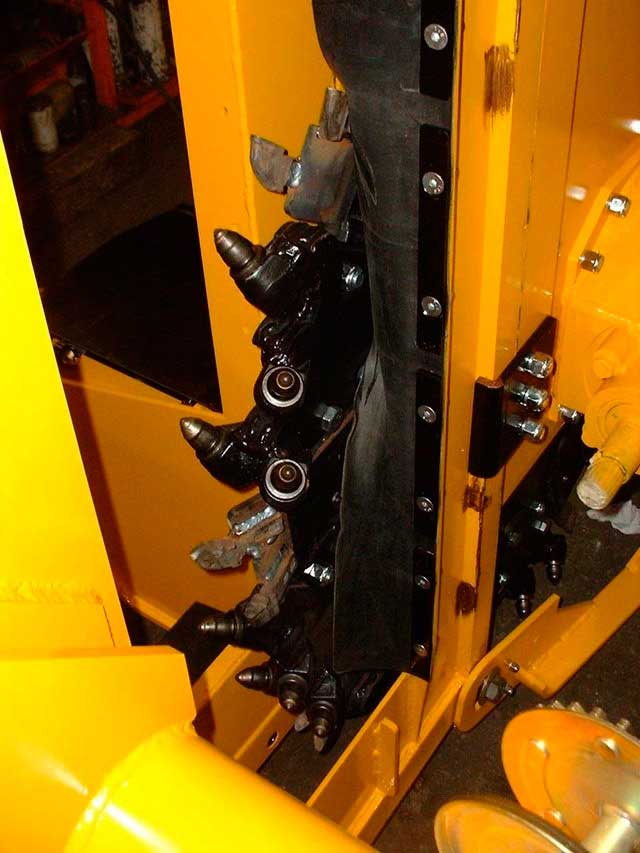

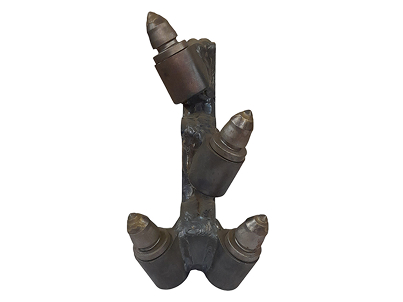

Bullet teeth
Rocky ground, large stones, asphalt, etc.
Note that it is perfectly possible to equip the wheel with three types of teeth.
Tractor Requirements
- 75+ HP with CAT2 linkage
- VARIO or Creeper gearbox (with a minimum speed of 100 metres/hour)
- 3 sets of feed/return spool valves (if using conveyor)
- PTO shaft 6 spline, 540 RPM

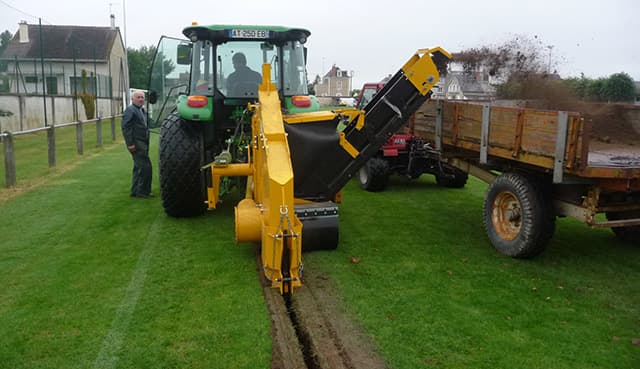

You can operate the Wizz Wheel 55 with a 75+ HP tractor
Why choose the Wizz Wheel 55?
What sports turf contractors say about the Wizz Wheel 55
“A rugged machine in tough/stoney conditions!”
John van Roestel
Owner, TDS Turf Drainage
Systems (Canada)
“Solid, easy to run, and it leaves a nice clean finish which saves loads of time on the job.”
Karl Molyneux
Managing Director, KPM
Groundworks (UK)
“35 years old and still going strong! For secondary drainage, we can do 500 metres per hour and still leave a clean trench.”
Chris Shaw
Construction Manager, Hewitt Sportsturf (UK)
