Wizz Wheel 75 – Robust & High-Speed Wheel Trencher

Slide Background

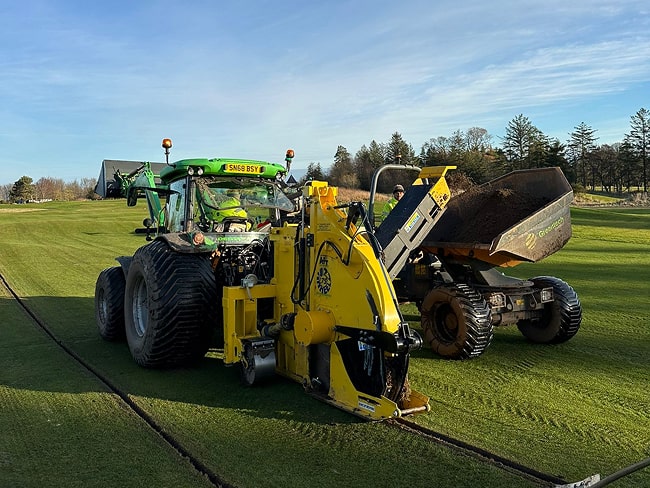

The Wizz Wheel 75 at a glance

Very high-speed trenching (up to 750 metres/hour)*
A clean-cut and narrow trench
Can dig in tough soil conditions (i.e. basalt)
Spoils collected by the clean-up conveyor system
Digging wheel made of hardened steel
Automatic laser grading as an option

*Speed factors: ground conditions, depth, and width.

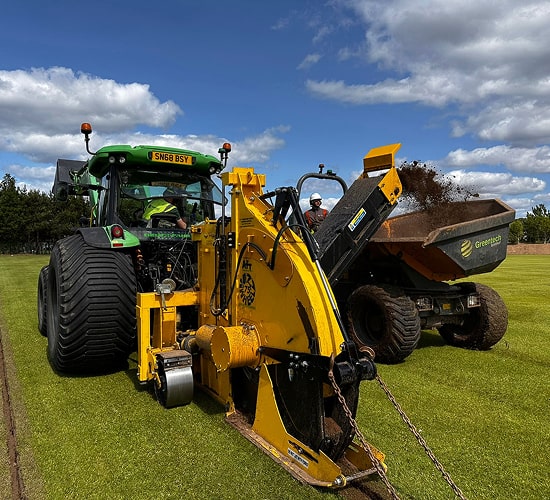

The Wizz Wheel 75 in action

Mexted Sports Turf (New Zealand) trenching with the Wizz Wheel 75 “like a knife through butter”

Main Features & Components

Maximum depth: 0.75m
Width: From 50mm to 150mm
Digging wheel fitted with soil blades, carbide teeth or bullet teeth
Complete soil clean-up conveyor system (discharge height 2.2m)
Optional laser grading accessories
Weight: Approx. 2000 kg

Tractor Requirements

120+ HP with CAT3 linkage
VARIO or Creeper gearbox (with a minimum speed of 50-100 metres/hour)
4 sets of feed/return spool valves
PTO shaft 6 spline, 540 RPM

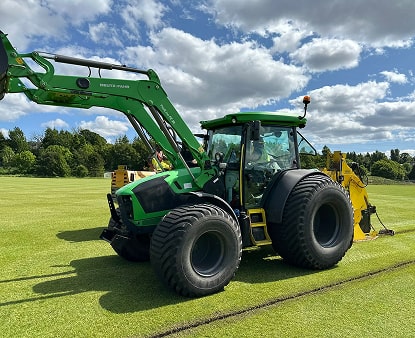

Tractor requirments

You can operate the Wizz Wheel 75 with 120+ HP tractor

Why choose the Wizz Wheel 75?

High-speed trenching

Up to 1250 metres per hour. Excellent choice for contractors having to move fast from one project to another.

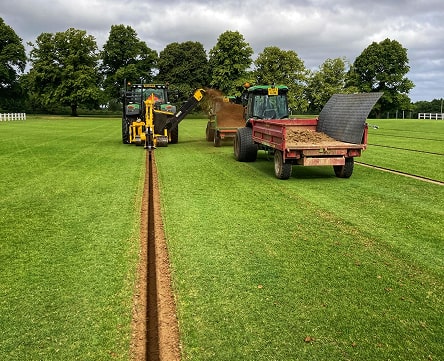

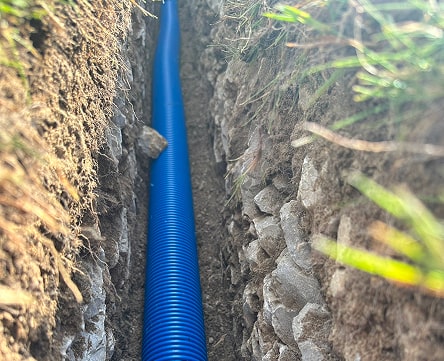

Clean-cut and narrow trenches

Suitable for main drains (primary drainage) and sand slitting (secondary drainage).

Tough trencher

Can dig in extra-hard conditions such as basalt (grade 6 on the Mohs scale).

Minimal maintenance

Monthly grease, check gearbox oil, and inspect for wear. Many machines run 20–30 years with proper care. Hewitt Sportsturf has used theirs for 35 years.

Ease of Use

If you can operate a tractor, you can operate the Wizz Wheel 75.

Fast delivery of spare parts

Find the part in our 3D parts book and give us a call. Most orders dispatch within 24 hours!

What sports turf contractors say about the Wizz Wheel 75

p7-mexted-sports-turf_logo

“It’s easy to use. The design is good. It’s leaving the trenches nice and clean.”

Todd Treweek

Construction Supervisor, Mexted Sports Turf (New Zealand)
Wizz Wheel 75 since 2025

p8-talbot-landscapes_logo2

“It is very user-friendly and produces a quality trench.”

Edward Marson

Contract Manager, Talbot Farm Landscapes (UK)
Wizz Wheel 75 since 2021

“Amazing machine, fast and clean.”

Richard Alker

Director, J. & R. Alker Sports Ground Construction (UK)
Wizz Wheel 75 since 2022

Frequently Asked Questions

Can the Wizz Wheel 75 be fitted onto any tractor?

The Wizz Wheel 75 requires a 120-140+ HP tractor with VARIO or with a creeper gearbox (with a minimum speed of 50 to 100 metres per hour).

Is the Wizz Wheel 75 easy to maintain?

Yes, other than checking the gearbox oil level and visually inspecting the machine, the Wizz Wheel 75 is very easy to maintain.

How long will the wheel last?

Our digging wheels are made of hardened steel. Unless a customer is constantly digging in very hard conditions it is very rare that one needs to change a wheel.

How will the Wizz Wheel 75 cope with stones?

Fitted with bullet teeth the Wizz Wheel 75 trencher has no problem going through hard conditions like stone, rocky soils, asphalt, concrete, etc.

How will the Wizz Wheel 75 cope with clay?

Unlike other machines the housing of the Wizz Wheel 75 has been designed to minimise clogging as a result of clay. We have regular customer feedback about how well our trencher performs in heavy clay conditions.

Can you use a laser with the Wizz Wheel 75?

Yes, the Wizz Wheel 75 has been designed to operate with laser grading equipment.

Do you supply laser equipment?

Yes, we have laser equipment in stock at our factory.

Do you have second-hand machines available?

Yes, we sometimes do. Please contact us to find out.

What is the typical speed of trenching?

This depends a lot on the soil conditions and depth/width of the trench. The trencher can work at a speed of 150 to 1500 metres per hour.

Where are your machines manufactured?

Our machines are manufactured at our factory in Sudbury, Suffolk, UK.
